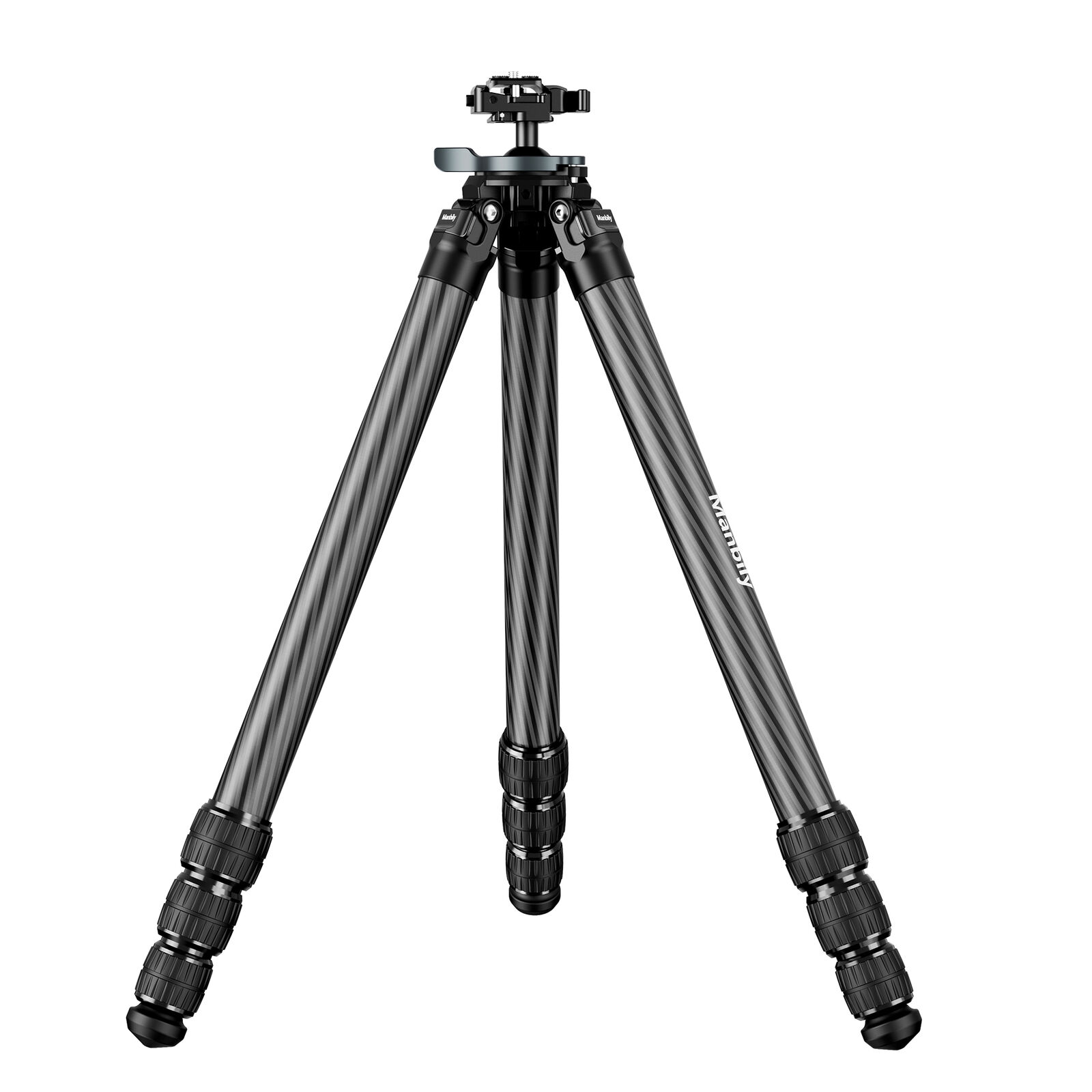

Manbily QM-404C Carbon Fiber Tripod professional for hunting

Item No.: QM-404C

For hunting, thermal, spotting scopes, rifles, or heavier ball heads, the jump from a 36mm to 40mm carbon fibre tripod is more meaningful than the numbers suggest.

The key reason: tripod stiffness increases non-linearly with tube diameter—roughly related to the tube diameter raised to the third or fourth power, not linearly. That means a seemingly small jump from 36mm to 40mm can produce a noticeable gain in rigidity and vibration control.

The Manbily carbon fiber tripod features a large 36mm tube diameter, resulting in a lightweight design with 40% increased torque resistance.

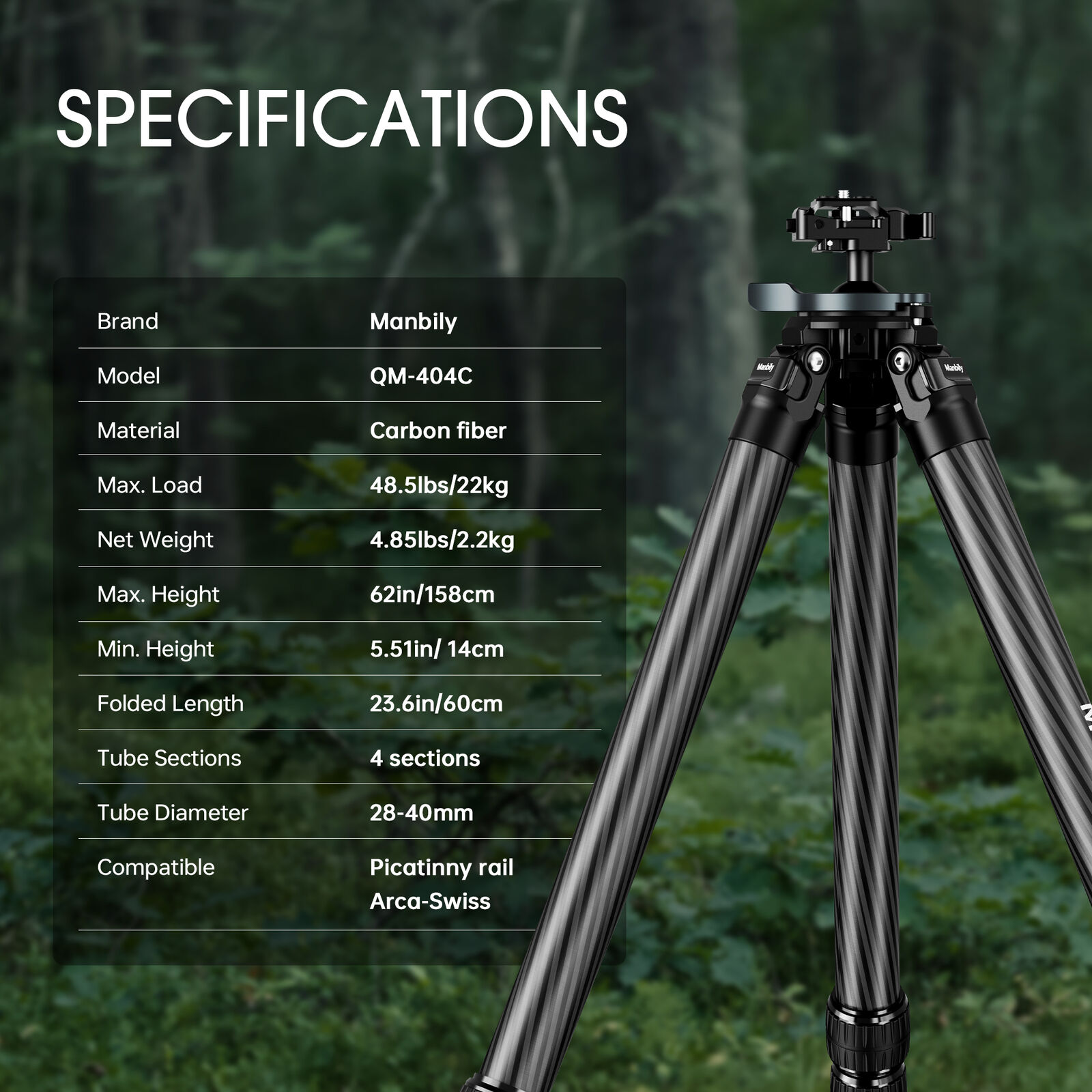

Specification

Material:Carbon fiber

Max.load:25kg/55 lbs

Tube section:4-sections

Max.tube: 40 mm

Min.tube: 28 mm

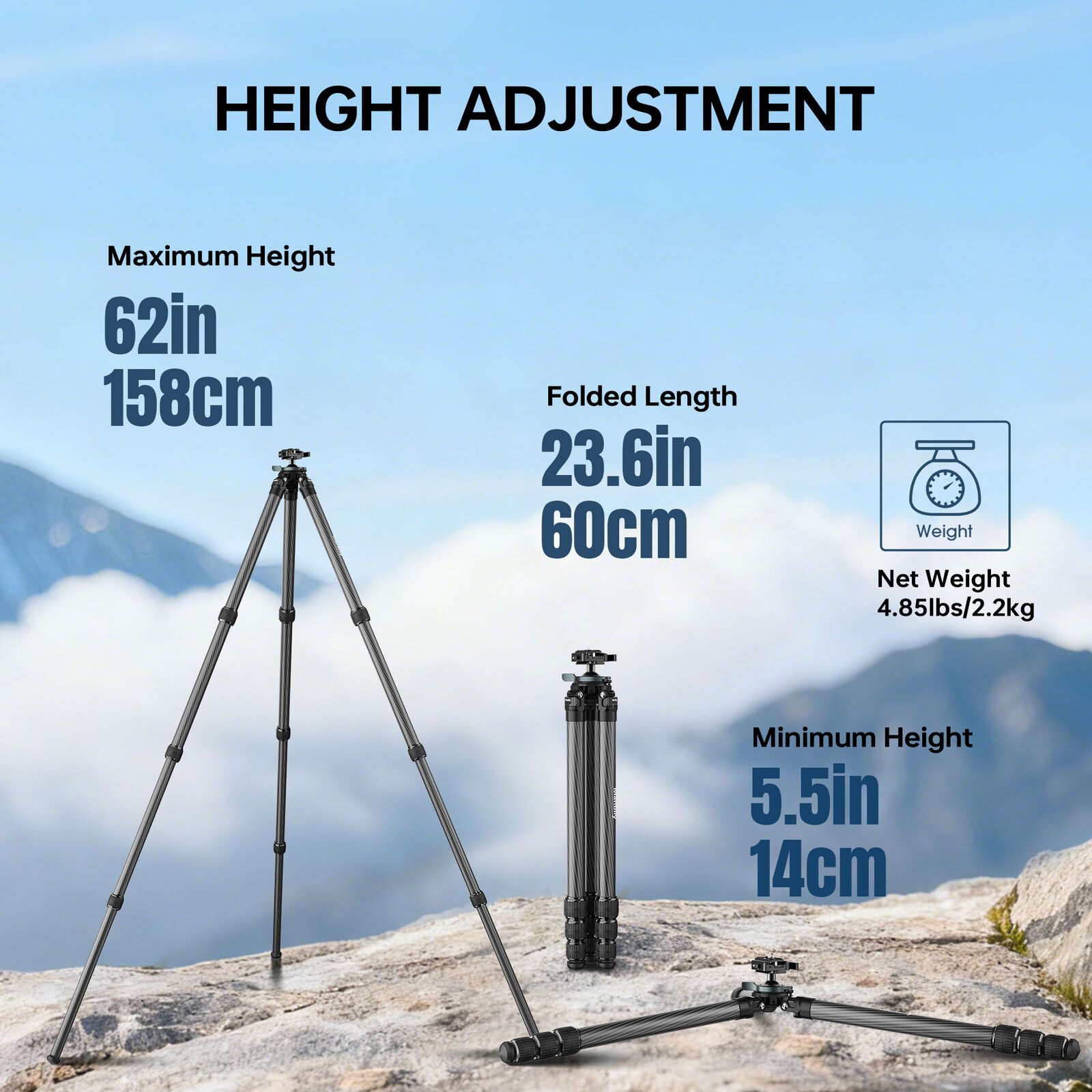

Folded length: 60cm

Max.height:158cm

Min.height:14cm

Compatible:Arca-Swiss/Picatinny rail

Package List:

1 x QM-404C Complete Tripod (includes ball head), 1 x Allen Key, 3 x Metal Spikes, 1 x User Manual; A carrying bag with a shoulder strap is included to protect the tripod during transportation

Feature

-Heavy Duty Carbon Fiber Tripod: This Manbily QM-404C hunting tripod is made of 8-layer carbon fiber, making it strong and stable. With a maximum leg diameter of 36 mm, it offers unparalleled stability and can withstand challenging environments

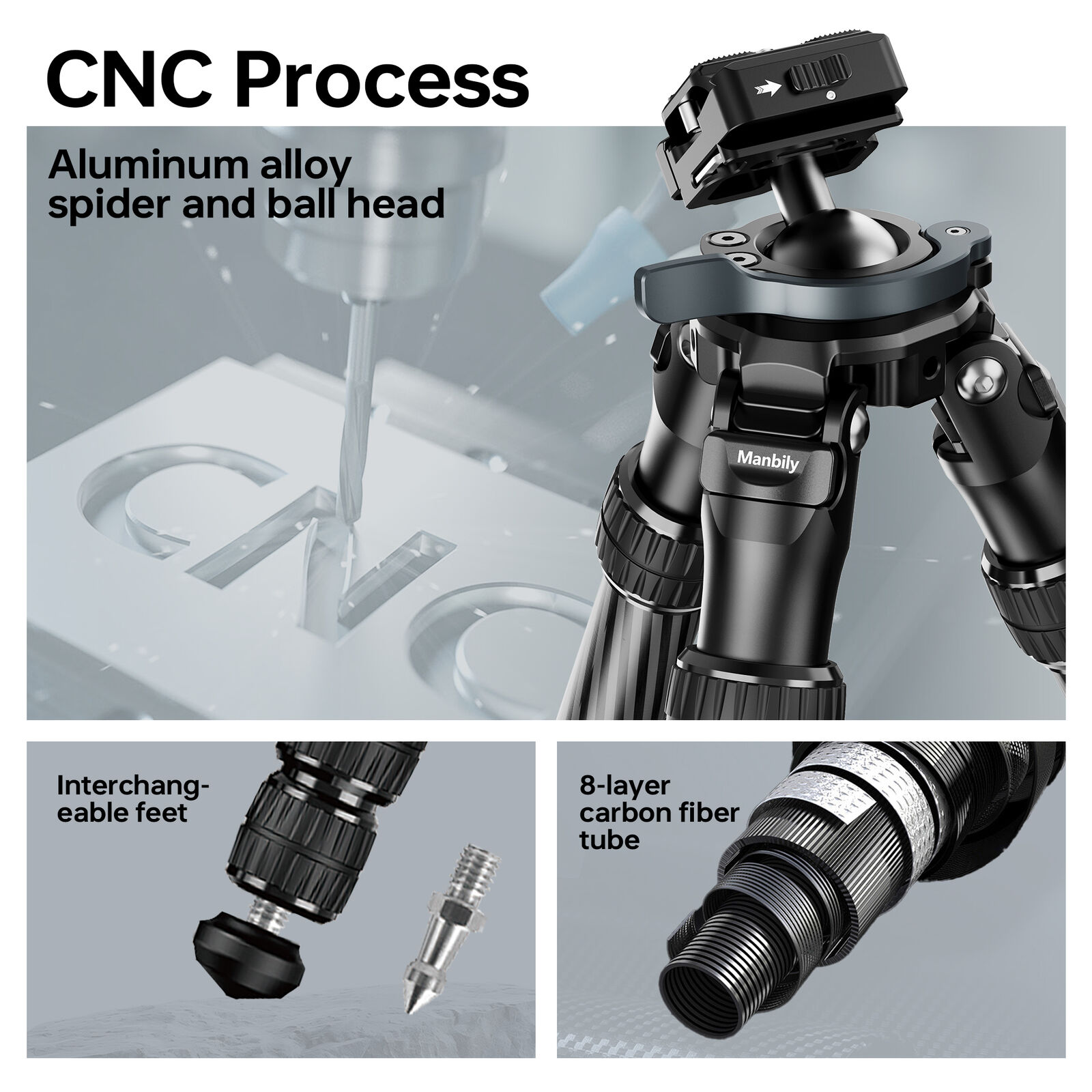

-Strong 45mm Ball: It features a large 45 mm ball and supports a maximum load capacity of 22 kg (50 lbs). Constructed from thick, high-grade aluminum using CNC processing for superior durability, offering a smoother surface and high-load structure than traditional die-casting

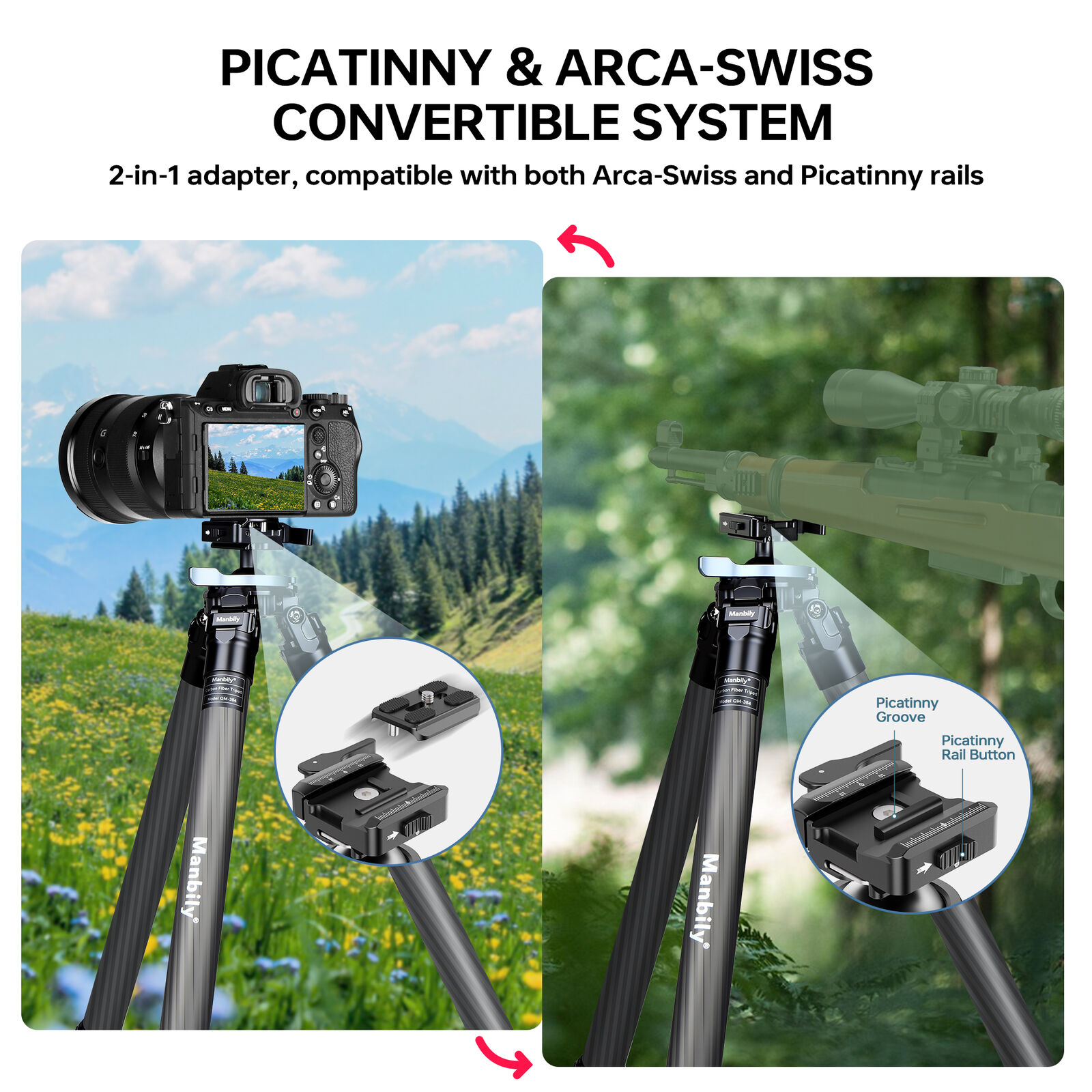

-Picatinny Arca-Swiss Adapters: 2-in-1 Picatinny to Arca-Swiss adapter with a 1/4 inch quick-release plate(60mm × 38mm ). Remove the QR plate to convert the adapter into a Picatinny clamp, compatible with most Picatinny-equipped gear. It provides photographers and hunters with unmatched flexibility and convenience

- Shooting Tripod: It has quarter-turn twist locks that extend to a maximum height of 62 inches or collapse the legs quickly. Three variable leg angles accommodate uneven terrain and allow shooting at a minimum height of 5.5". The rubber feet can be replaced with metal spikes.

In practical field use:

Attribute	36mm CF tripod	40mm CF tripod
Static stability	Very good	Excellent
Vibration damping	Good	Noticeably faster settling
Torsional rigidity (twisting)	Good	Better
Wind resistance	Good	Better
Heavy thermal + saddle + rifle	Good	Better
Standing shots at full extension	Can show some flex	Much more confidence
Weight	Slightly lighter	Usually 200–500g heavier
Packability	Slightly easier	Slightly bulkier
