4030CSI-D is one tripod ballhead kit.

Featuring inverted legs design whose biggest tubes at the base ensuring super stable support.

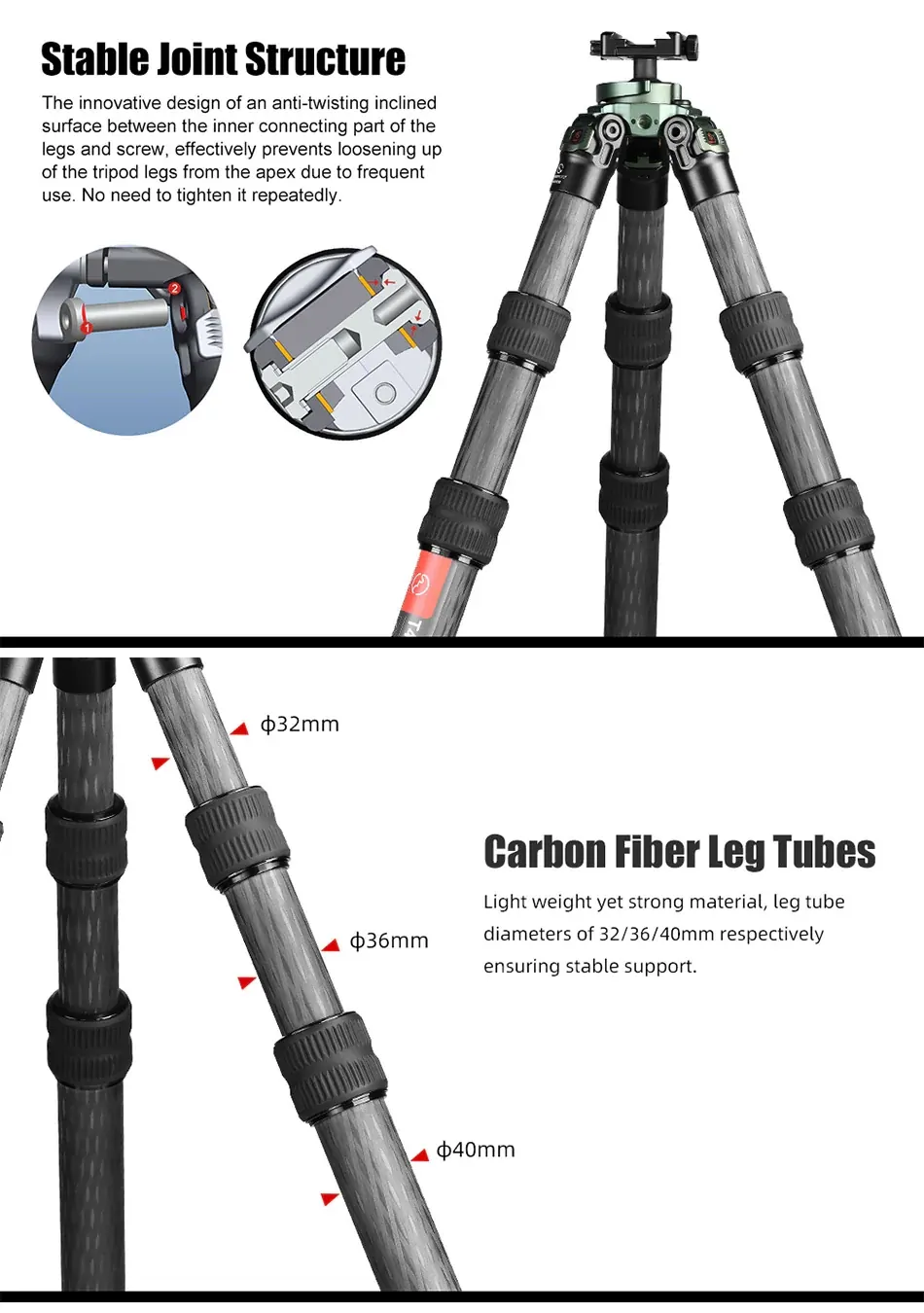

Tube diameters of 32/36/40mm.

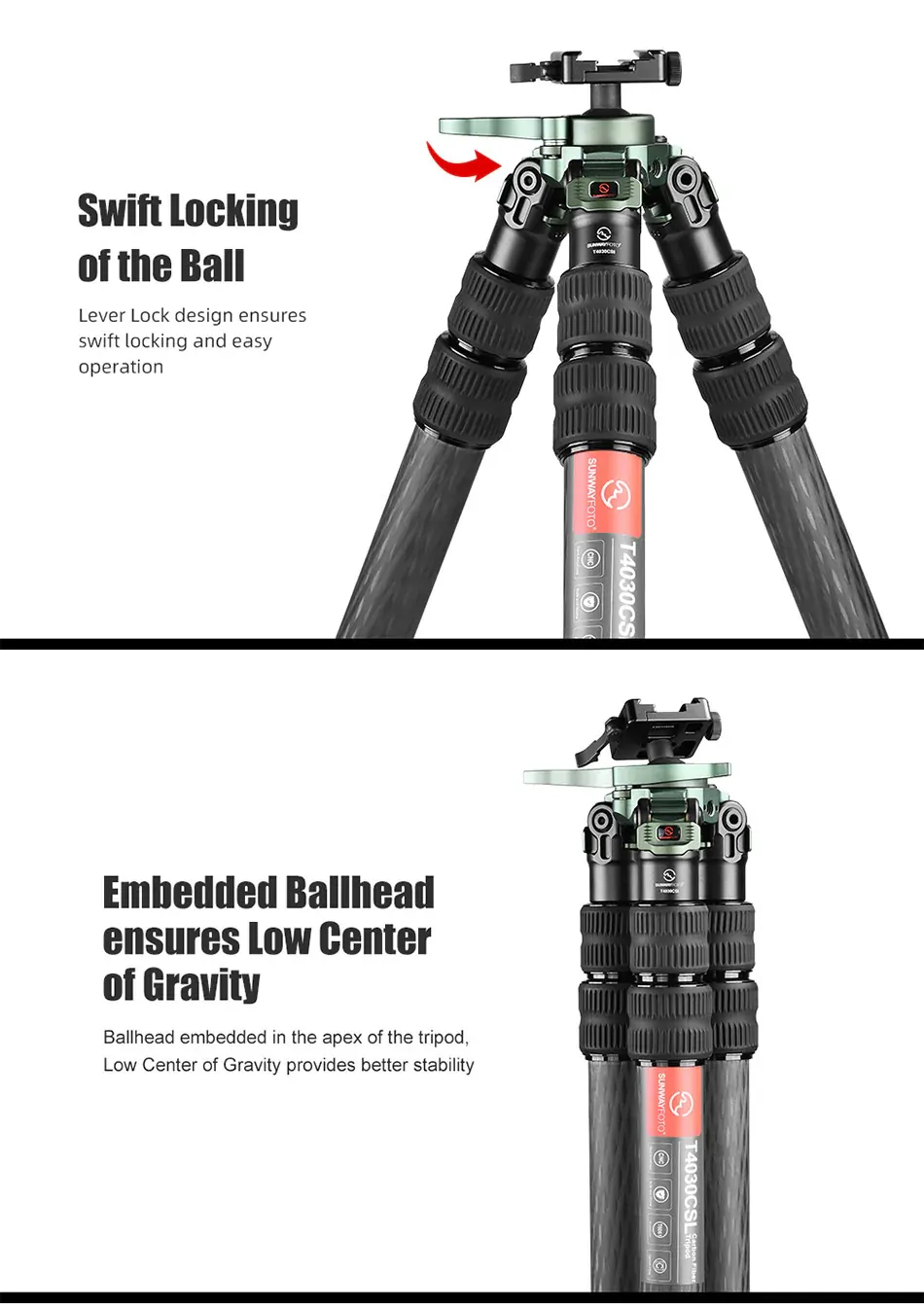

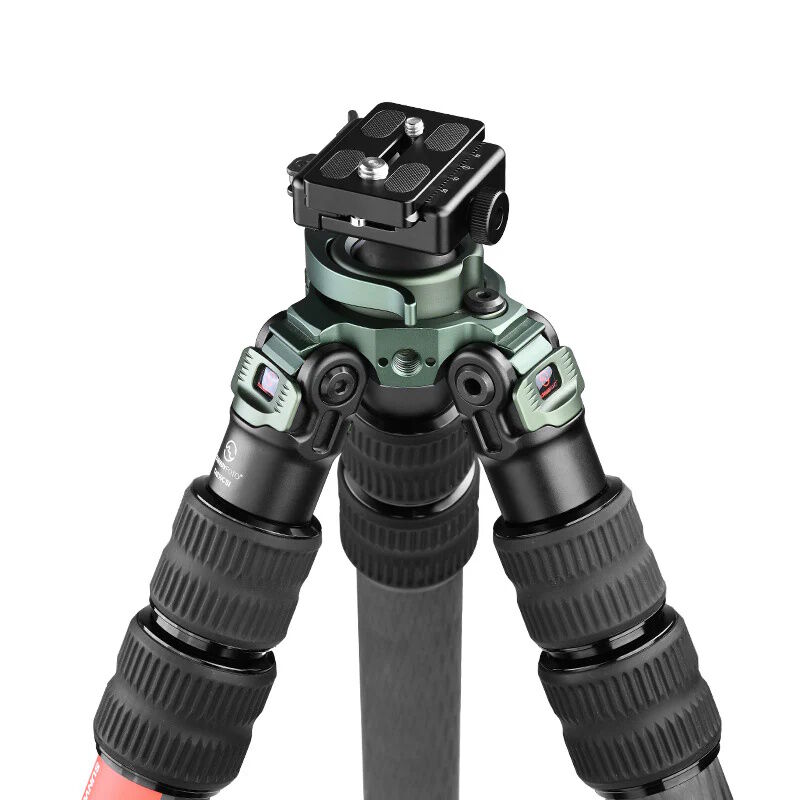

Embedded ballhead provides low center of gravity hence better stability.

Optional accessories are available to go with the tripod kit for various applications.

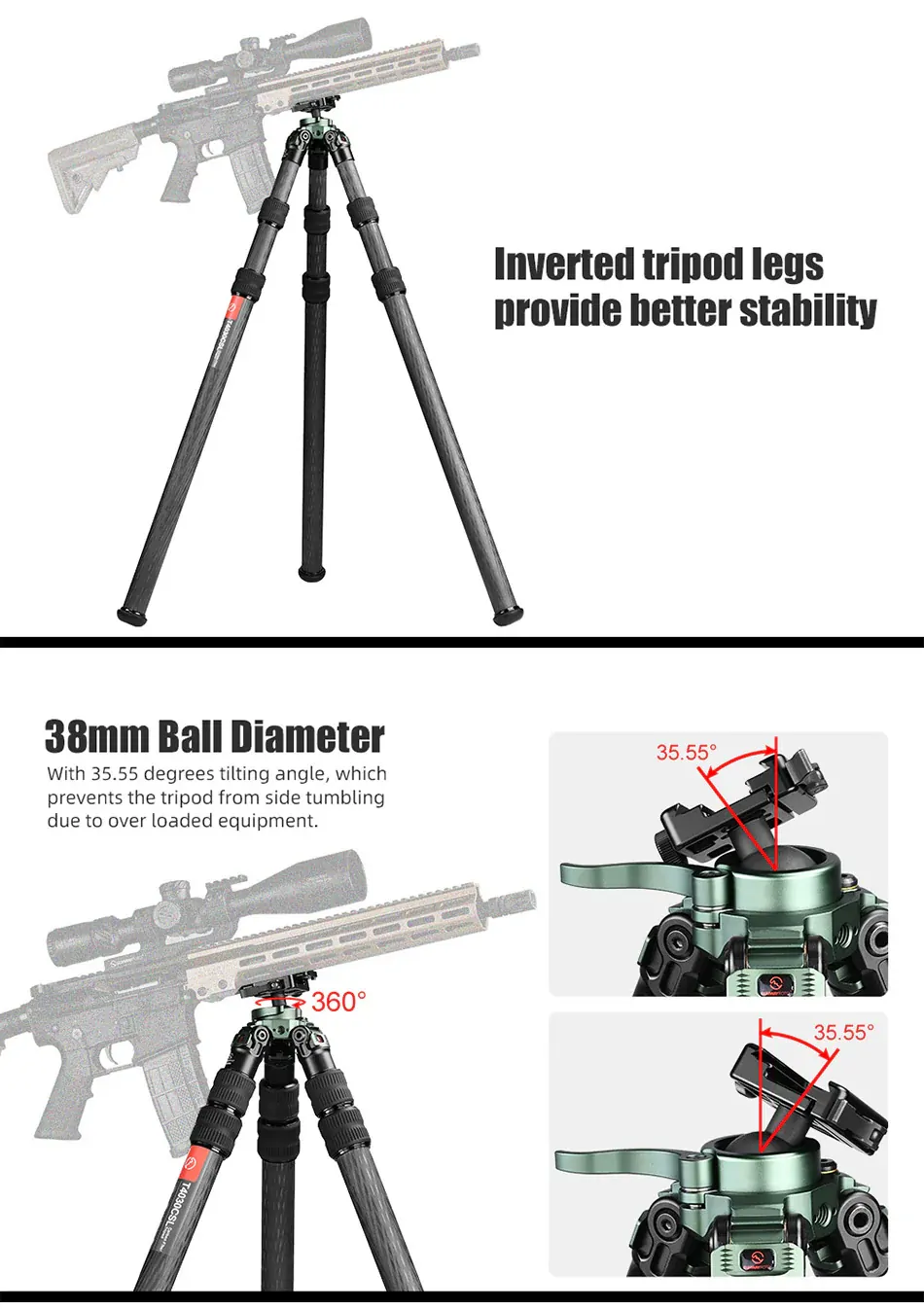

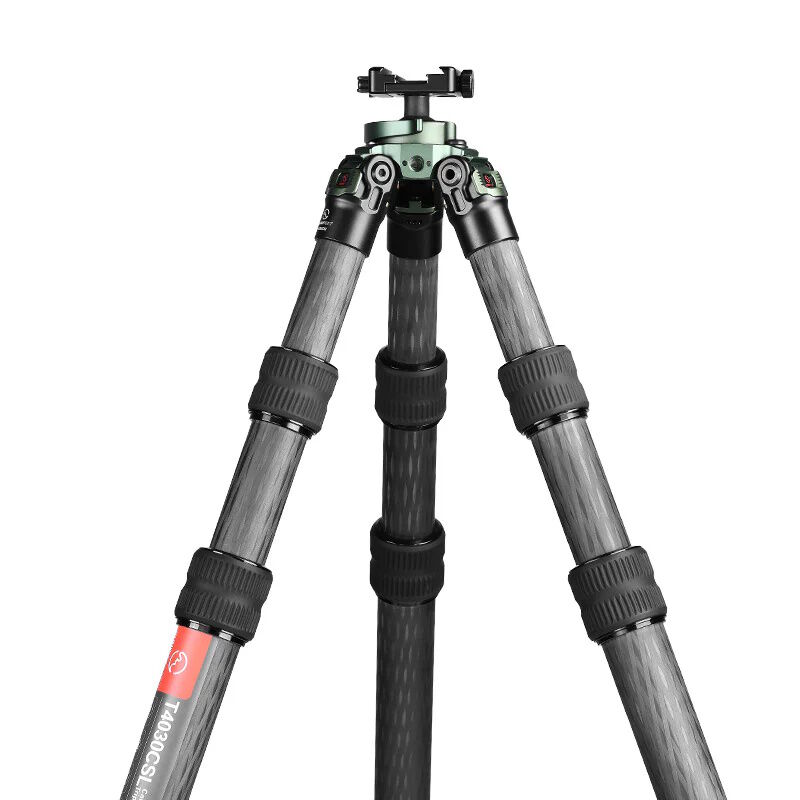

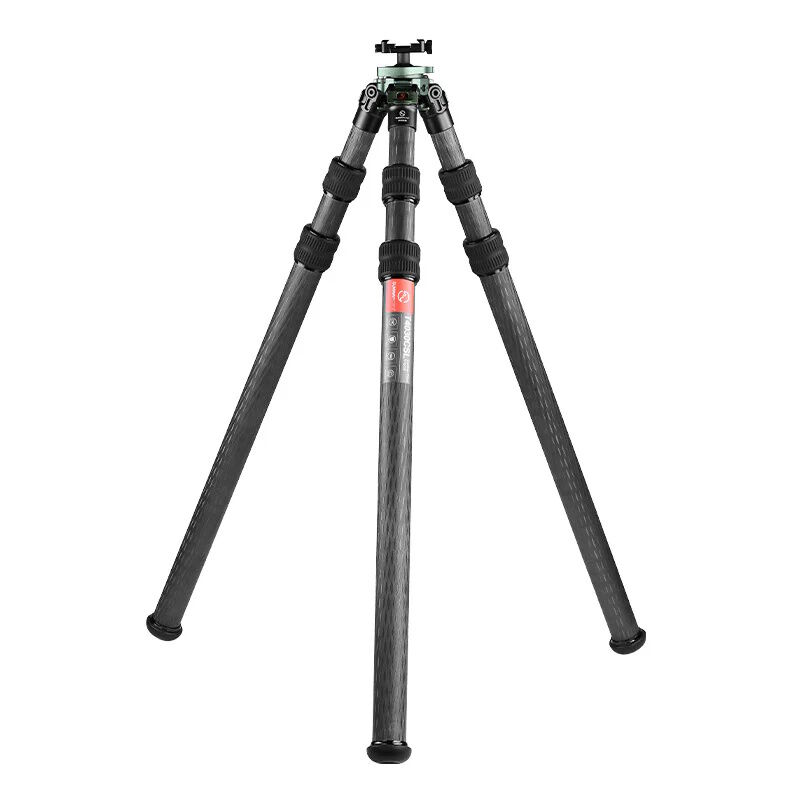

The Sunwayfoto T4030CSI-D is an inverted-leg carbon-fiber tripod designed mainly for precision shooting, hunting, and heavy optics. The “inverted” design means the largest leg tubes are at the ground instead of near the head, which changes how the tripod behaves under load.

Below are the key benefits of the inverted tripod design on this model.

---

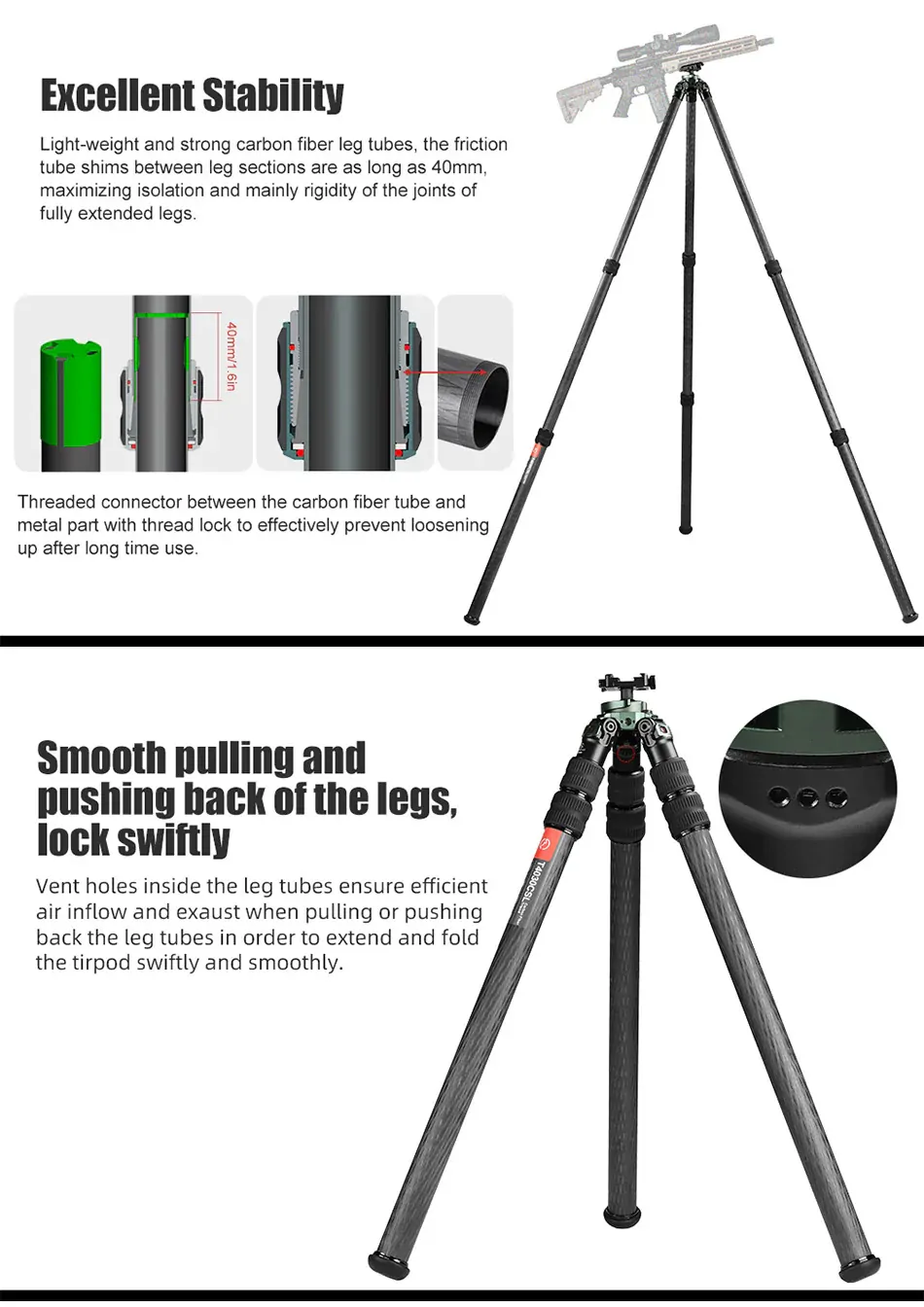

1. Much Better Stability (Lower Centre of Gravity)

In an inverted tripod, the thickest and heaviest leg sections sit at the bottom, lowering the centre of gravity.

Benefits:

• Less wobble when tracking targets

• More stable for heavy optics or rifles

• Reduced vibration after recoil

This is especially valuable for thermal scopes, spotting scopes, and rifle shooting, where stability directly affects shot placement.

---

2. Stronger Ground Contact

Because the largest diameter tubes are touching the ground, the tripod has a wider, stronger base.

Advantages in the field:

• Better grip on uneven ground

• Less sinking in soft soil or sand

• More resistance to twisting when panning

For hunting environments (rocky paddocks, scrub, hillsides), this makes a noticeable difference.

---

3. Handles Heavy Loads Better

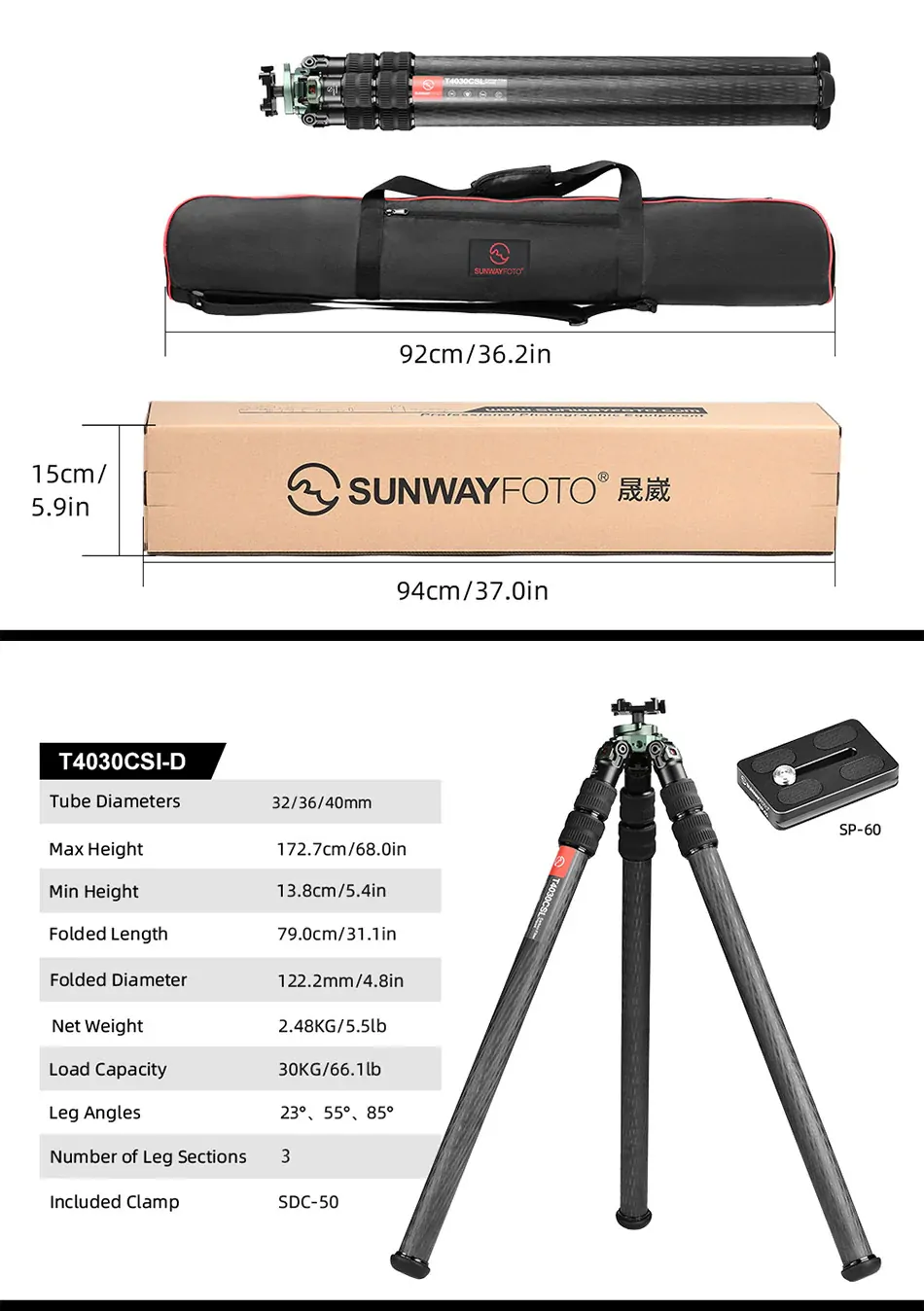

The T4030CSI-D uses 32/36/40 mm carbon-fiber tubes and is rated for ~30 kg (66 lb) payload.

That means it can easily support:

• Thermal rifle scopes

• Large spotting scopes

• Rifle + saddle clamp

• Heavy camera or video rigs

The thicker lower tubes reduce flex when weight is applied.

---

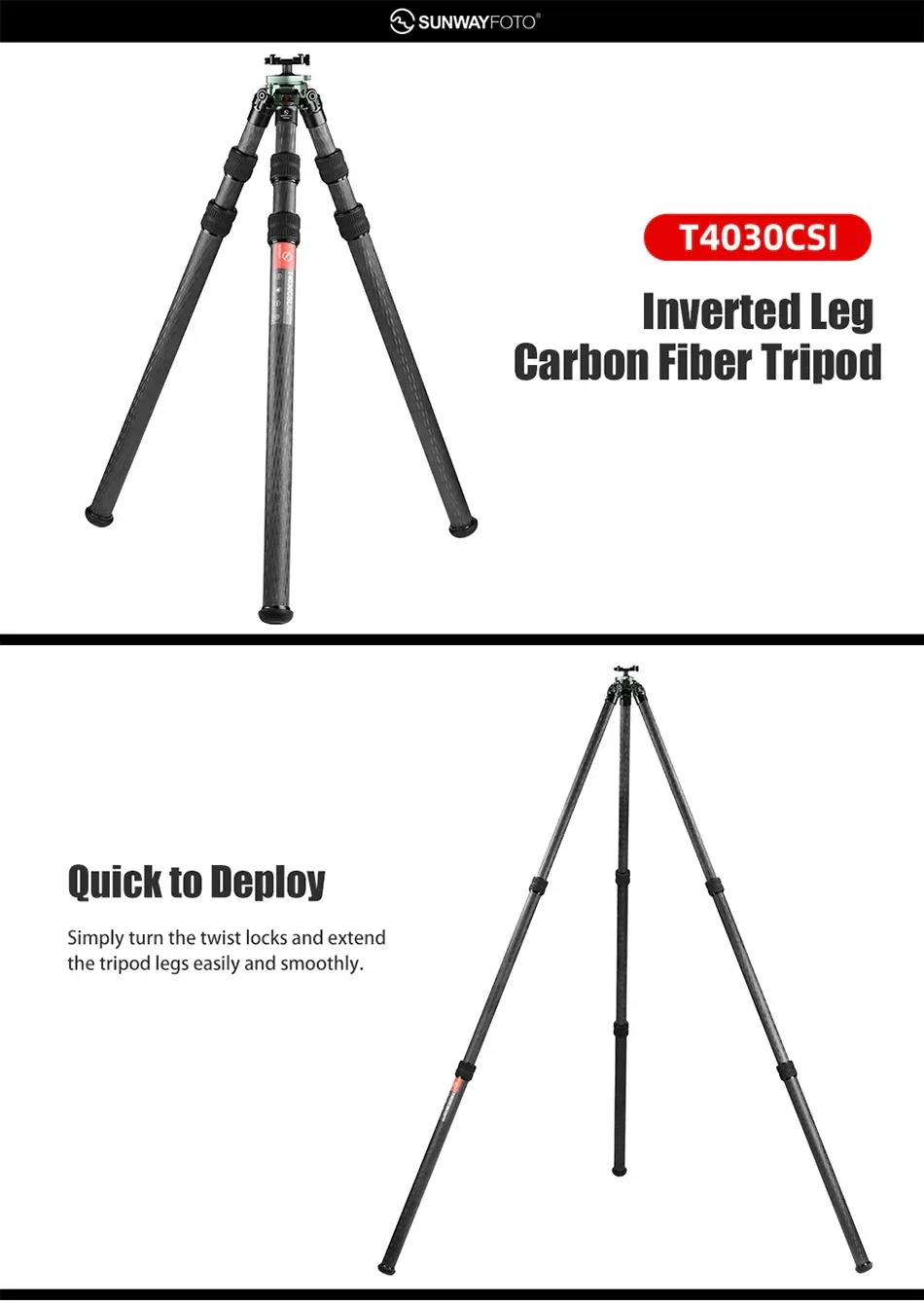

4. Faster Deployment

Inverted tripods tend to deploy quicker because the heavier lower leg sections naturally drop open when you extend them.

Benefits in hunting:

• Faster setup when spotting animals

• Less fiddling with leg sections

• Faster transitions between shooting positions

---

5. Better Recoil Management for Shooting

Shooters often prefer inverted designs because they absorb recoil and vibration better.

Why:

• Lower centre of gravity

• Larger base footprint

• Less flex in the legs

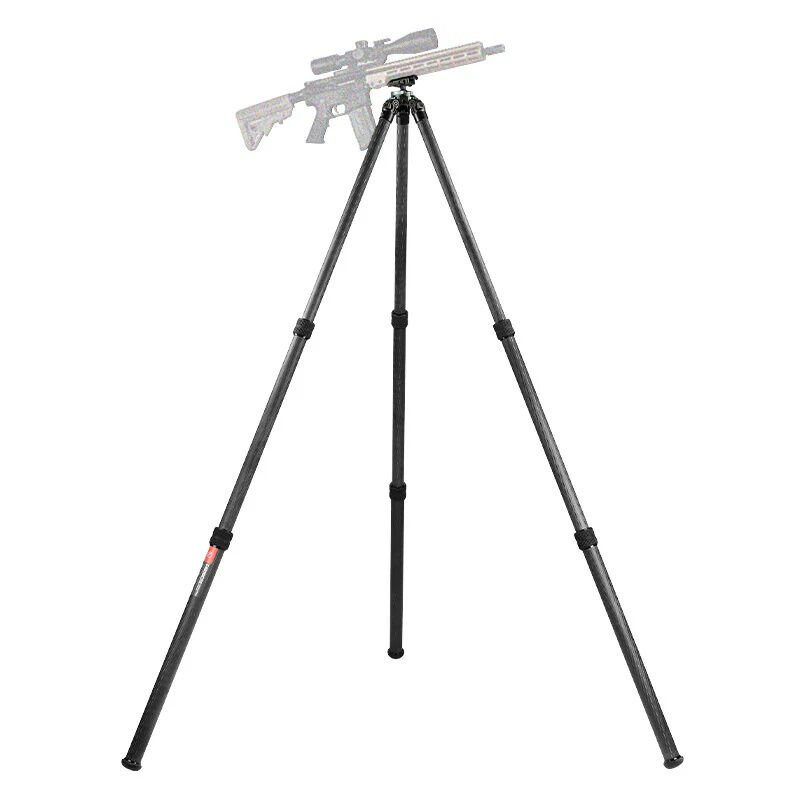

This creates a more stable shooting platform, particularly for PRS or predator hunting setups.

---

6. Good Height Range and Versatility

The T4030CSI-D typically offers:

• Max height: ~172 cm (≈68 in)

• Min height: ~14 cm

• Leg angles: 23°, 55°, 85°

This lets you shoot from:

• Standing

• Kneeling

• Sitting

• Prone positions

---

7. Carbon-Fibre Advantages

The tripod is carbon fibre, giving:

• Lower weight for carrying

• Better vibration damping

• Resistance to corrosion and weather

Important for long hunts or night shooting trips.

---

The inverted design mainly gives more stability, faster setup, and better recoil handling, which is why it’s becoming popular in PRS shooting and thermal hunting setups.
