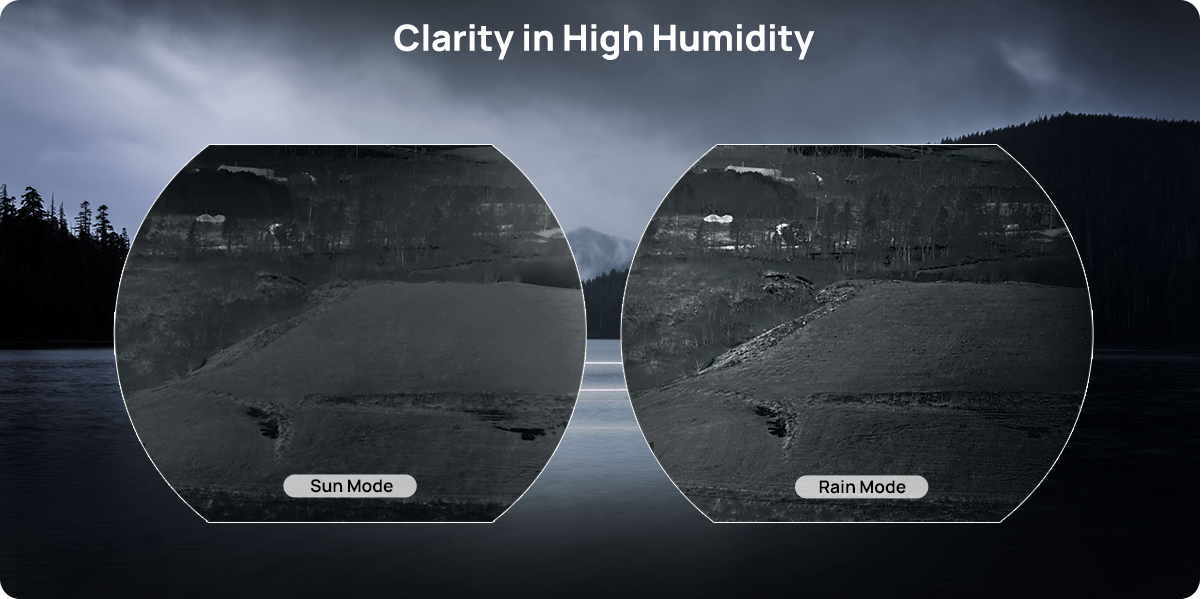

Real-time image optimization reduces foggy or blurry effects caused by moisture, ensuring crisp and detailed visuals even in rain, mist, or humid conditions.

Digital zoom may blur image details, but LEAP L12R sharpens them with AI algorithms.
RET Technology fills in missing details when zoomed, keeping images smooth and clear.
Dynamic Scene Adaptation balances bright and dark areas, preserving local details.
Sharper Edge Definition enhances edges for clearer target separation.

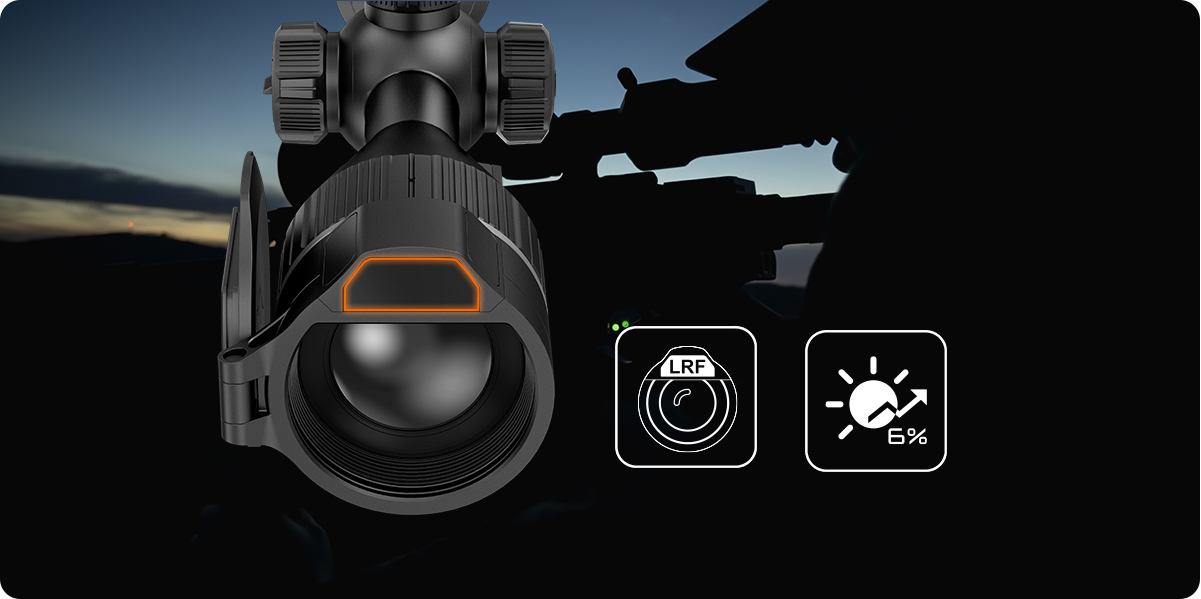

ROBUST AND BRIGHT LENS DESIGN

Compared to irregular LRF cuts, the linear “bar-style” design preserves a common riflescope look with a smaller cross-section, increases light intake for greater clarity, and improves impact resistance to reduce lens damage.

CLOSER ALIGNMENT FOR MORE ACCURATE RANGING

Unlike external rangefinders, which need setup and calibration, the LEAP LRF is integrated into the lens near the optical axis, providing precise measurements instantly with no extra adjustments.

LONG-DISTANCE RANGING WITH BALLISTICS SUPPORT

Since long-range shots demand precise aiming adjustments, the built-in laser rangefinder measures up to 1,312 yards and integrates with ballistic calculations to provide accurate holdover solutions. PIP mode further displays corrected aiming points for faster target acquisition. The rangefinder box can be moved closer to the target for less eye movement and a clearer view.



TACTILE KNOBS AND BUTTONS​

Operating in the dark or with gloves can cause mis-presses. The “3 knobs + 2 buttons” design ensures tactile, reliable control.

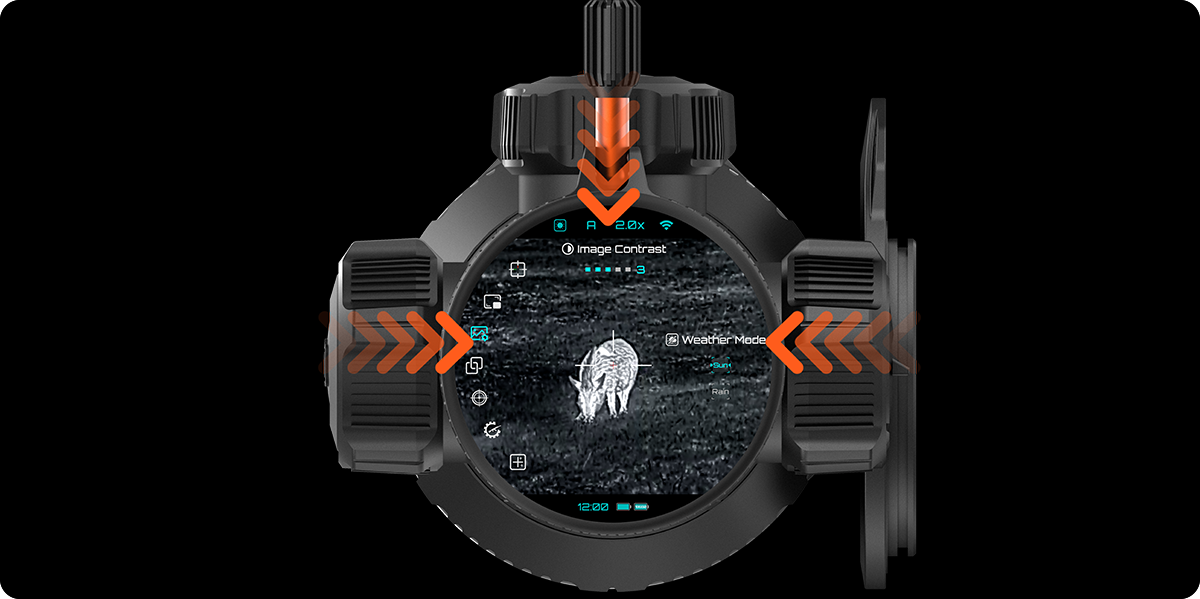

ONE-TO-ONE KNOB OPERATION

Complex menus risk missed opportunities. Each of the three knobs is mapped to a specific on-screen function, reducing menu layers and allowing quick, intuitive operation, even for beginners.

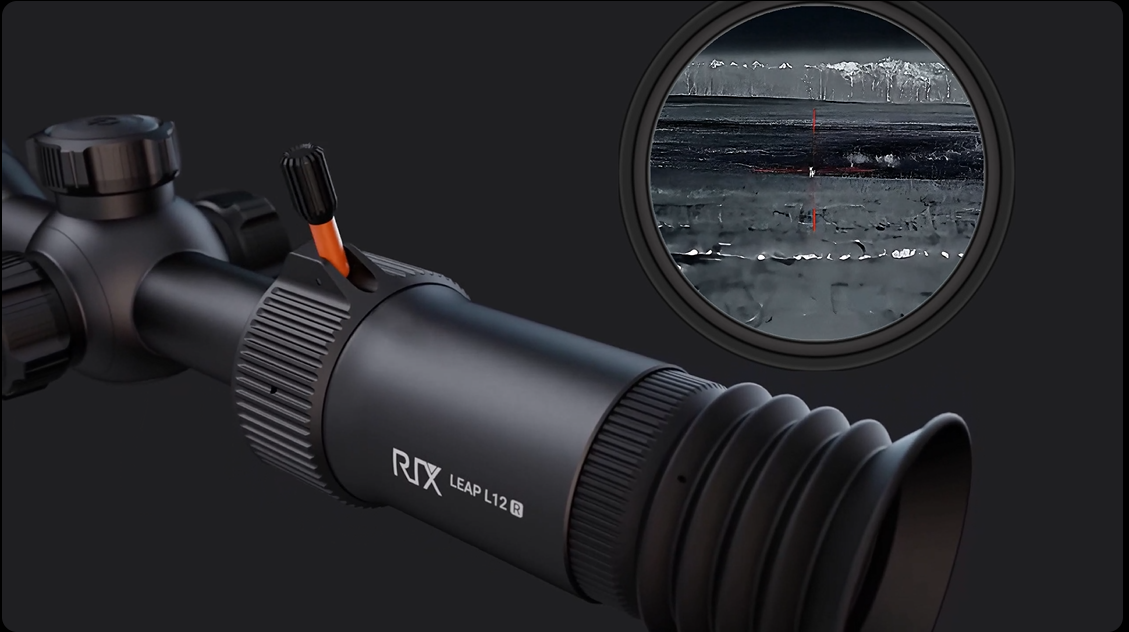

EASY LEVER ADJUSTMENT

Eyepiece and optional objective lens adjustment levers make magnification adjustments effortless, providing smooth and precise lens control.

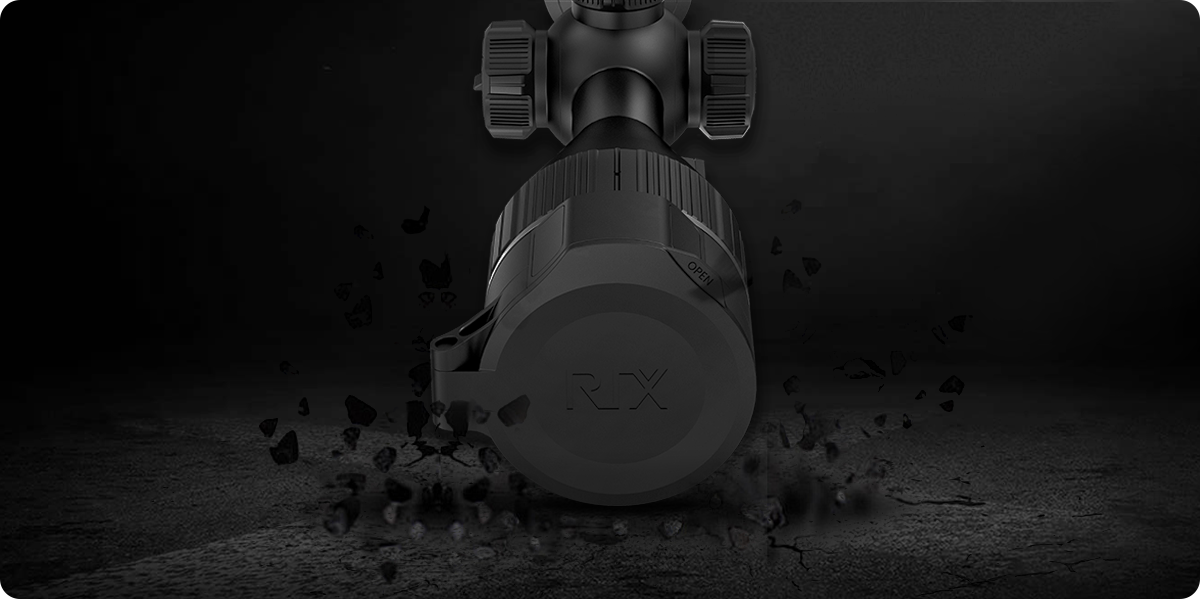

METAL LENS COVER

Lenses are prone to impact damage, and the aluminum alloy cover shields both the lens and LRF while staying lightweight and durable. The lens cap closes almost silently for discreet use.

DUAL BATTERY SYSTEM FOR 6.5 HOURS RUNTIME

LEAP L12R features an internal 4000 mAh battery and supports an external swappable 18650 battery, providing up to 6.5 hours of operation and keeping you in the field longer.



EXTENDED DETECTION DISTANCE

With a detection range of up to 3390 yards, LEAP L12R can spot distant heat signatures for enhanced situational awareness.

MORE FEATURES

Return to Center Function (RTC)



The RTC feature automatically resets the reticle to the center position on the y-axis after zeroing, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target. This feature enhances precision shooting and target acquisition.



Wi-Fi Integration with RIX+ APP



With the built-in Wi-Fi module, you can establish a seamless connection between the device and your Android or iOS smartphone via the RIX+ app. This powerful combination offers a multitude of advantages, such as wireless software updates and live image streaming directly to your mobile device screen.



1000g Impact Resistance

The LEAP’s durable design enables it to withstand impacts of up to 1000g, making it an ideal choice for hunting weapons with larger calibers such as .375 H&H, 12-gauge, and 9.3×64. It is built to ensure longevity and to remain undamaged even under challenging conditions.



Photo and Video Recording

The LEAP features built-in photo and video recording capabilities. You can access all the camera functions by using just one button with a camera icon. Press and holdthe button to take photos and short press to start or stop video recording.



LEAP L12R Full Specifications

Sensor Specifications

Type VOx Uncooled



Resolution, pixels 1280×1024

Pixel Pitch, µm 12

NETD, mK <15

Frame Rate, Hz 60



Optical Specifications

Objective Lens, mm 60

Optical Zoom, x 2.0 to 6.0

Field of View (H×V) 14.6°×11.7°

Digital Zoom, x 1 to 8

Eye Relief, mm 50

Diopter Adjustment, D -5 to +5

Detection Range, m/yd 3100/3390



Display Specifications

Type AMOLED

Resolution, pixels 2560×2560



Laser Rangefinding

Measurement Range, m/yd 1200/1312

Measurement Accuracy, m/yd ±1/±1.09



Video Recorder

Video / Photo Resolution, pixel 1280×1280

Video / Photo Format .mp4 / .jpg



Built-in Memory, GB 64



Environmental Characteristics

Degree of Protection, IP code IP67

Operating Temperature Range, ℃/℉ -20~ +50/-4 ~ +122



Connections and Compatibilities

Battery Type 18650

Wi-Fi √

Operating Time on Battery Pack (at t=72°F), h 6.5

External Power Supply, V 5V (Type-C USB)

Max Recoil Power on Rifled Weapon (Eo), g/Joules 1000/6000



Compatible Mounts 30mm rings



Weight & Size

Dimensions, inch 15.5×3.8×3.3

Weight, g/lb 1356/3.0
